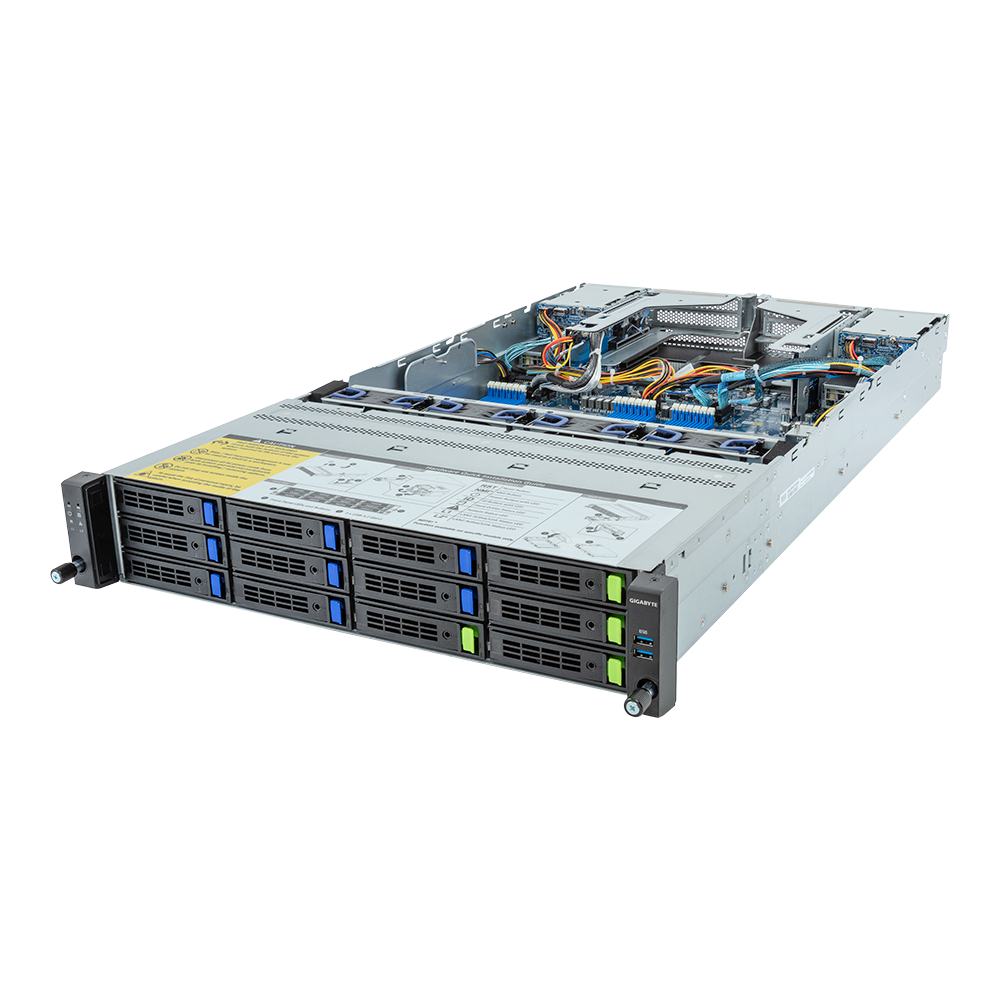

R283_Z93-AAF1

Rack Server - AMD EPYC™ 9004 - 2U DP 2 x PCIe Gen5 GPUs
Comparison Request Price
Overview Specifications
  • Supports up to 2 x Dual slot Gen5 GPUs
  • Dual AMD EPYC™ 9004 Series Processors
  • 12-Channel DDR5 RDIMM, 24 x DIMMs
  • Dual ROM Architecture
  • 2 x 1Gb/s LAN ports via Intel® I350-AM2
  • 4 x 3.5"/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 8 x 3.5"/2.5" SATA/SAS hot-swappable bays
  • 4 x 2.5" SATA/SAS hot-swappable bays on the rear side
  • 2 x FHFL PCIe Gen5 x16 slots for GPUs
  • 2 x FHHL PCIe Gen5 x16 slots
  • 2 x OCP 3.0 Gen5 x16 slots
  • Compatible with SupremeRAID™ by Graid Technology
  • 1+1 2400W 80 PLUS Platinum redundant power supplies
Dimensions

438 x 87 x 815

Form Factor

2U

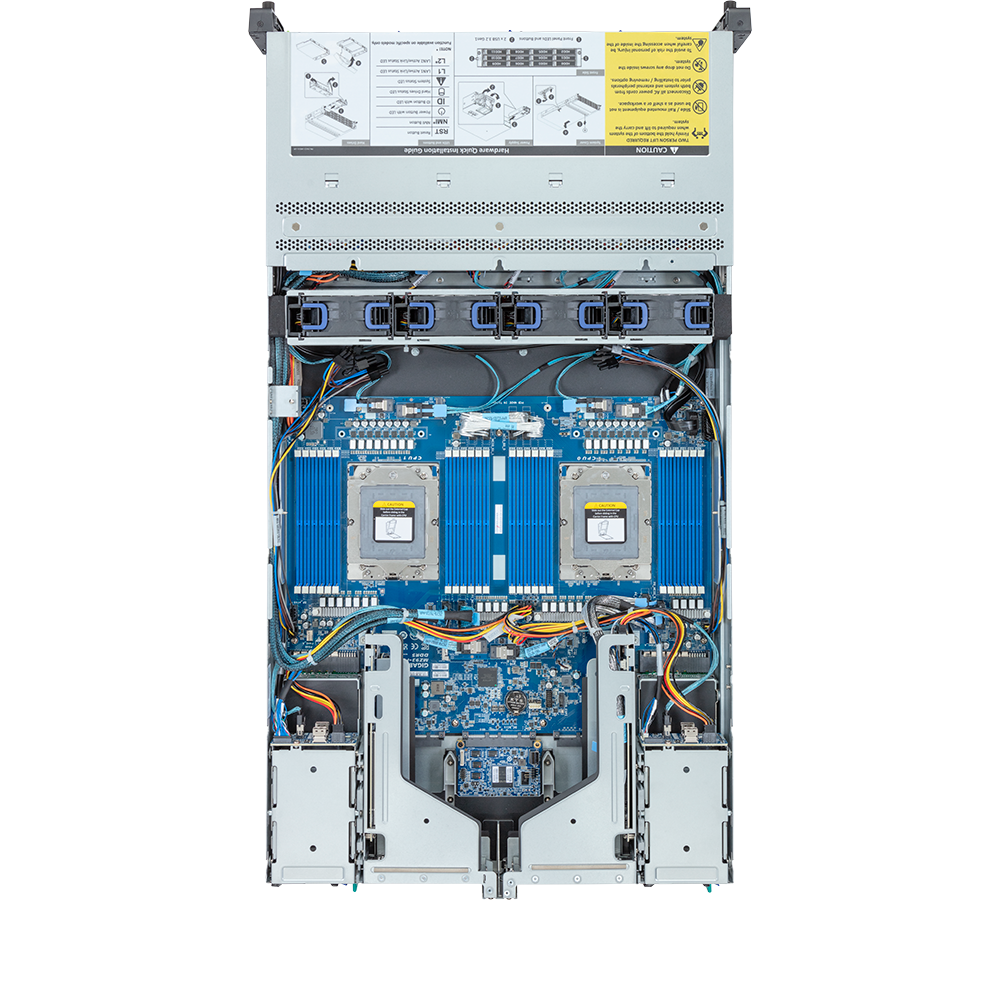

Motherboard

MZ93-FS0

CPU

AMD EPYC™ 9004 Series Processors
Dual processor, 5nm technology
Up to 32 cores, 64 threads per processor
Supports cTDP 240W at ambient 30°C

Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

Socket

2 x LGA 6096
Socket SP5
Chipset

System on Chip
Memory

24 x DIMM slots
DDR5 memory supported only
12-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
Memory speed: Up to 4800 MT/s

Network Connectivity

Rear side:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN
Video Output

Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Drive Bays / Storage

Front side:
4 x 3.5"/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
8 x 3.5"/2.5" SATA/SAS hot-swappable bays
- (NVMe from CPU_1)
- (6 x SATA via CRS2810 from CPU_0)
- (6 x SATA via CRS2810 from CPU_1)

Rear side:
4 x 2.5" SATA/SAS hot-swappable bays, via CRS2810 from CPU_1

SAS card is required for SAS devices support

Note: SATA hotplug utility can be downloaded on support page.
Expansion Slots

1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0
Supports NCSI function

1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_1
Supports NCSI function

1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports 2280/22110 cards
- Occupied by CRS2810 - 6 x SATA ports

1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_1
- Supports 2280/22110 cards
- Occupied by CRS2810 - 4 x SATA ports

1 x M.2 slot:
- M-key
- PCIe Gen3 x2, from CPU_1
- Supports 2280/22110 cards
- Occupied by CRS2810 - 6 x SATA ports

Management

Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

Security / TPM

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

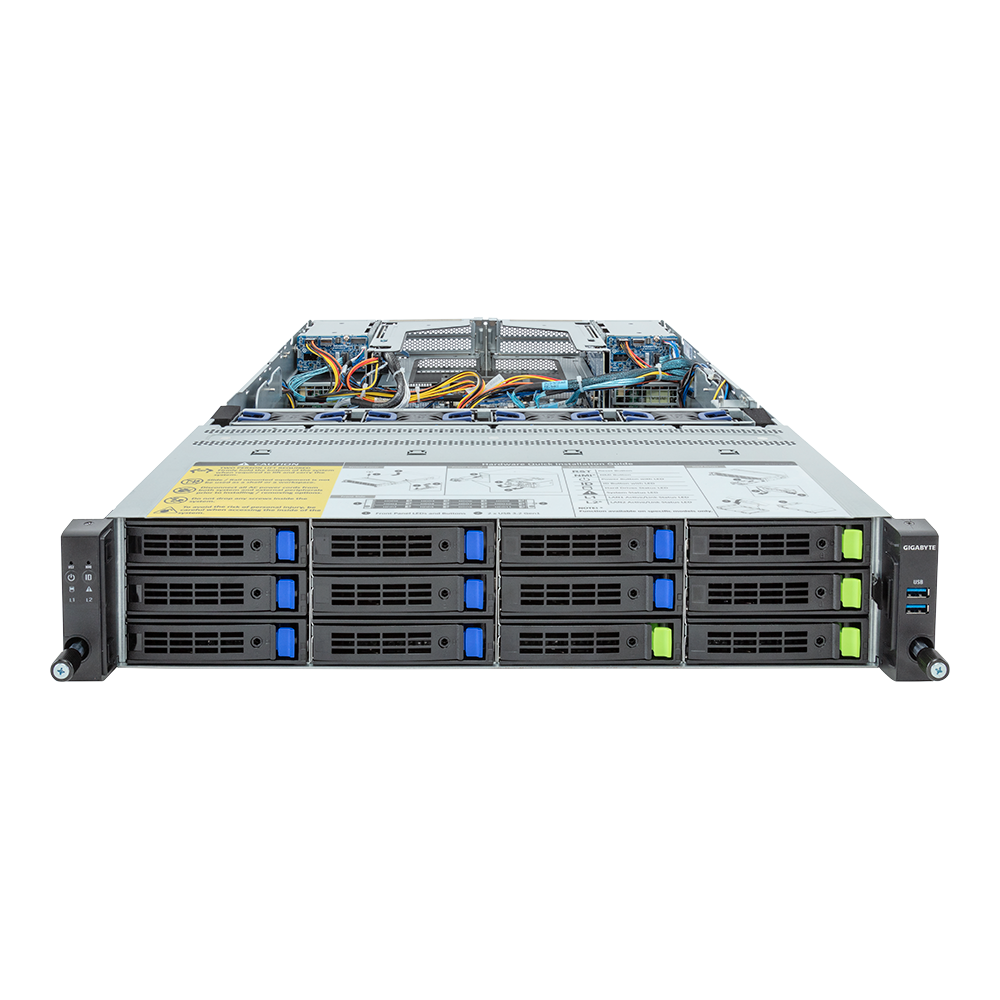

Front I/O

2 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

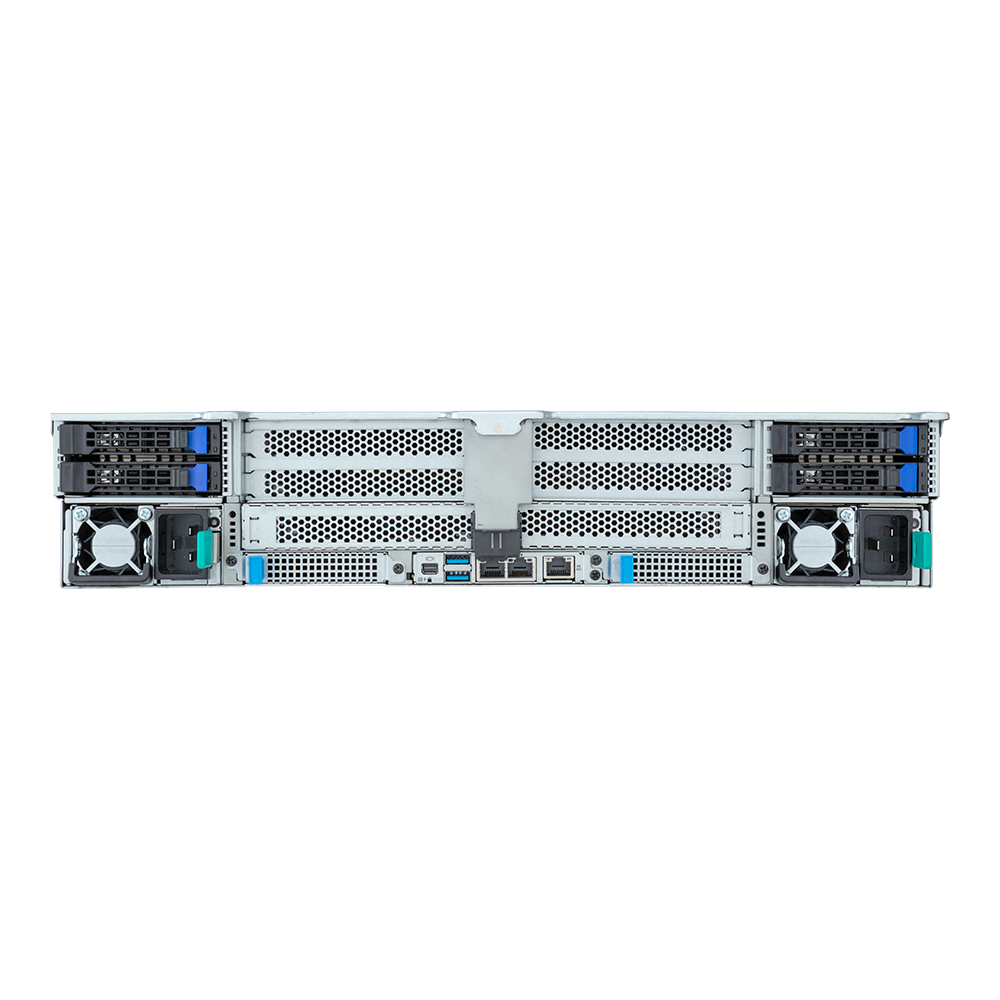

Rear I/O

2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID LED
System Fans

4 x 80x80x38mm (18,300rpm)

Power Supply

1+1 2400W 80 PLUS Platinum redundant power supplies

AC Input:
- 100-127V~/ 12.5A, 47-63Hz
- 180-200V~/ 14.5A, 47-63Hz
- 200-240V~/ 14.5A, 47-63Hz

DC Input: (Only for China)
- 240Vdc/ 12A

DC Output:
- Max 1000W/ 100-127V~
+12V/ 84A
+12Vsb/ 3A
- Max 2200W/ 180-200V~
+12V/ 180A
+12Vsb/ 3A
- Max 2400W/ 200-240V~ or 240Vdc Input
+12V/ 197A
+12Vsb/ 3A

Note: The system power supply requires C19 power cord.
Operating Environment

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Sas

Depends on SAS add-in cards
Raid

Optional compatible RAID Cards: NVMe RAID Cards with SupremeRAID™ by Graid Technology RAID Card models: SR-1001-ED4 Support RAID 0/1/5/6/10
Internal Io

1 x TPM header
Backplane Board

Speed and bandwidth: Front side - CBP20C5: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s Rear side - CBP2022: SATA 6Gb/s or SAS 12Gb/s
Os Compatibility

Please refer to OS compatibility table in support page

Packaging Dimensions

1077 x 679 x 300 mm
Packaging Content

1 x R283-Z93-AAF1
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
2 x GPU power cables (2x PCIe 8pin, 350mm)
1 x 2-Section Rail kit

Part Numbers

- Barebone package: 6NR283Z93DR000AAF1* - Motherboard: 9MZ93FS0UR-000 - 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R - CPU heatsink: 25ST1-553202-A0R - Front panel board - CFP2001: 9CFP2001NR-00 - Backplane board - CBP2022: 9CBP2022NR-00 - Backplane board - CBP20C5: 9CBP20C5NR-00 - Fan module: 25ST2-88382T-S1R - M.2 type SATA card - CRS2810: 9CRS2810NR-00 - Riser card - CRS101Q: 9CRS101QNR-00 - Riser card - CRS101T: 9CRS101TNR-00 - Riser card - CRS201I: 9CRS201INR-00 - Riser card - CRS2227: 9CRS2227NR-00 - G-SCM board - CDCR114: 9CDCR114NR-00 - Mini-DP to D-Sub cable: 25CRN-200801-K1R - GPU power cable (2x PCIe 8pin, 350mm): 25CRI-350305-Y4R - Power supply: 25EP0-224000-D0S
Optional Parts

- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- RAID card (SR-1001-ED4): 25FC1-SR1000-AFS
- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR283Z93SR-RMA-A100
Additional Certifications

Windows Server 2022 (x64)
Riser Card

CRS101T: - 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0 CRS101Q: - 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1 CRS201I: - 1 x PCIe x16 (Gen5 x16) FHFL slot, from CPU_0, for GPUs CRS2227: - 1 x PCIe x16 (Gen5 x16) FHFL slot, from CPU_1, for GPUs
