G293_Z42-IAP1

HPC/AI Server - AMD EPYC™ 9004 - 2U DP 8 x PCIe Gen5 GPUs (with PCIe switches) Immersion
Comparison Request Price
Overview Specifications
  • Immersion Cooling Server
  • Supports up to 8 x Dual slot Gen5 GPUs
  • Dual AMD EPYC™ 9004 Series Processors
  • 12-Channel DDR5 RDIMM, 24 x DIMMs
  • Dual ROM Architecture
  • 2 x 10Gb/s LAN ports via Broadcom® BCM57416
  • 4 x 2.5" Gen5 NVMe/SATA/SAS hot-swappable bays
  • 4 x 2.5" SATA/SAS hot-swappable bays
  • 8 x FHFL PCIe Gen5 x16 slots for GPUs
  • 2 x LP PCIe Gen5 x16 slots for add-in cards
  • Dual 3000W 80 PLUS Titanium redundant power supply
Dimensions

448 x 87.5 x 800
Weight

Gross Weight: 35 kg
Form Factor

2U
Motherboard

MZ43-G20
CPU

AMD EPYC™ 9004 Series Processors
AMD EPYC™ 9004 Series Processors with AMD 3D V-Cache™ Technology
Dual processor, 5nm technology
Up to 128 cores, 256 threads per processor
cTDP up to 400W

Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket

2 x LGA 6096
Socket SP5
Chipset

System on Chip
Memory

24 x DIMM slots
DDR5 memory supported only
12-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
Memory speed: Up to 4800 MT/s
Network Connectivity

Top side:
2 x 10Gb/s LAN ports (1 x Broadcom® BCM57416)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN
Video Output

Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Drive Bays / Storage

Bottom side:
4 x 2.5" Gen5 NVMe/SATA/SAS* hot-swappable bays
4 x 2.5" SATA/SAS* hot-swappable bays
- (NVMe from CPU_1, SATA from CPU_1)

*SAS card is required to support SAS drives.
Expansion Slots

- Maximum limitation of GPU card: 285mm (L) x 111.5mm (W) x 39.5mm (H).
- System is validated for population with a uniform GPU model.
- Support is not provided for mixed GPU populations.
- For the latest GPU cards QVL, please contact your GIGABYTE representative.
Management

Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
Security / TPM

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

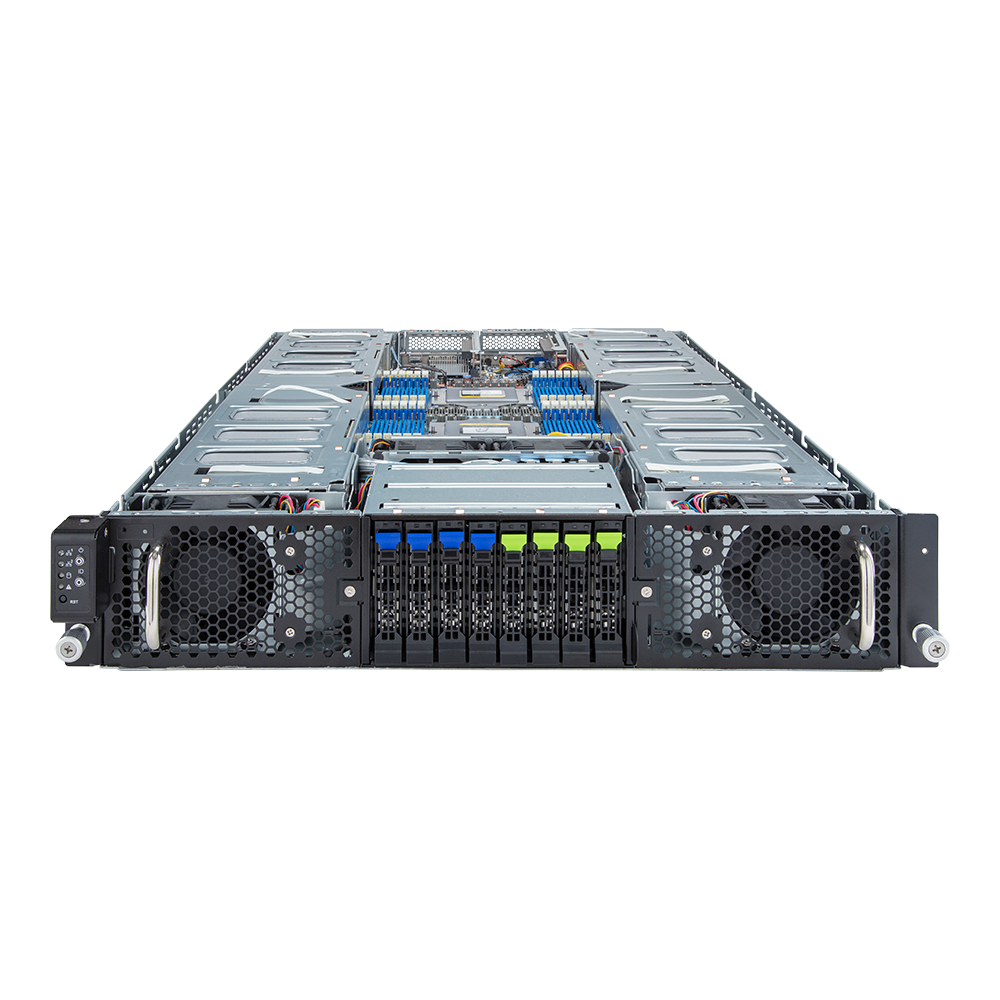

Front I/O

2 x USB 3.2 Gen1
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x System status LED
Power Supply

Dual 3000W 80 PLUS Titanium redundant power supply

AC Input:
- 100-127V~/ 15.5A, 50-60Hz
- 200-220V~/ 15.5A, 50-60Hz
- 220-240V~/ 15.5A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 15.5A

DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 81A
+12Vsb/ 3A
- Max 2600W/ 200-220V~
+12.2V/ 213A
+12Vsb/ 3A
- Max 3000W/ 220-240V~ or 240Vdc Input
+12.2V/ 245A
+12Vsb/ 3A

Note: The system power supply requires C19 power cord.
Operating Environment

Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Sas

Require SAS add-in cards
Raid

Require RAID add-in cards
Internal Io

1 x TPM header

Backplane Board

Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS 12Gb/s
Os Compatibility

Please refer to OS compatibility table in support page
Packaging Dimensions

1133 x 724 x 261 mm
Packaging Content

1 x G293-Z42-IAP1
2 x CPU heatsinks
4 x GPU power cables (12VHPWR, 250mm)
4 x GPU power cables (12VHPWR, 280mm)
Part Numbers

- Barebone package: 6NG293Z42DR000IAP1* - Motherboard: 9MZ43G20UR-000 - CPU heatsink: 25ST1-453217-A0R - Backplane board - CBPG086: 9CBPG086NR-00 - Riser card - CRSG01F: 9CRSG01FNR-00 - Riser card - CRSG622: 9CRSG622NR-00 - Riser card - CRSG623: 9CRSG623NR-00 - GPU power cable (12VHPWR, 250mm): 25CRI-250107-Y4R - GPU power cable (12VHPWR, 280mm): 25CRI-300102-Y4R - Power supply: 25EP0-23000E-G1S
Optional Parts

- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- RMA packaging: 6NG293Z42SR-RMA-I100

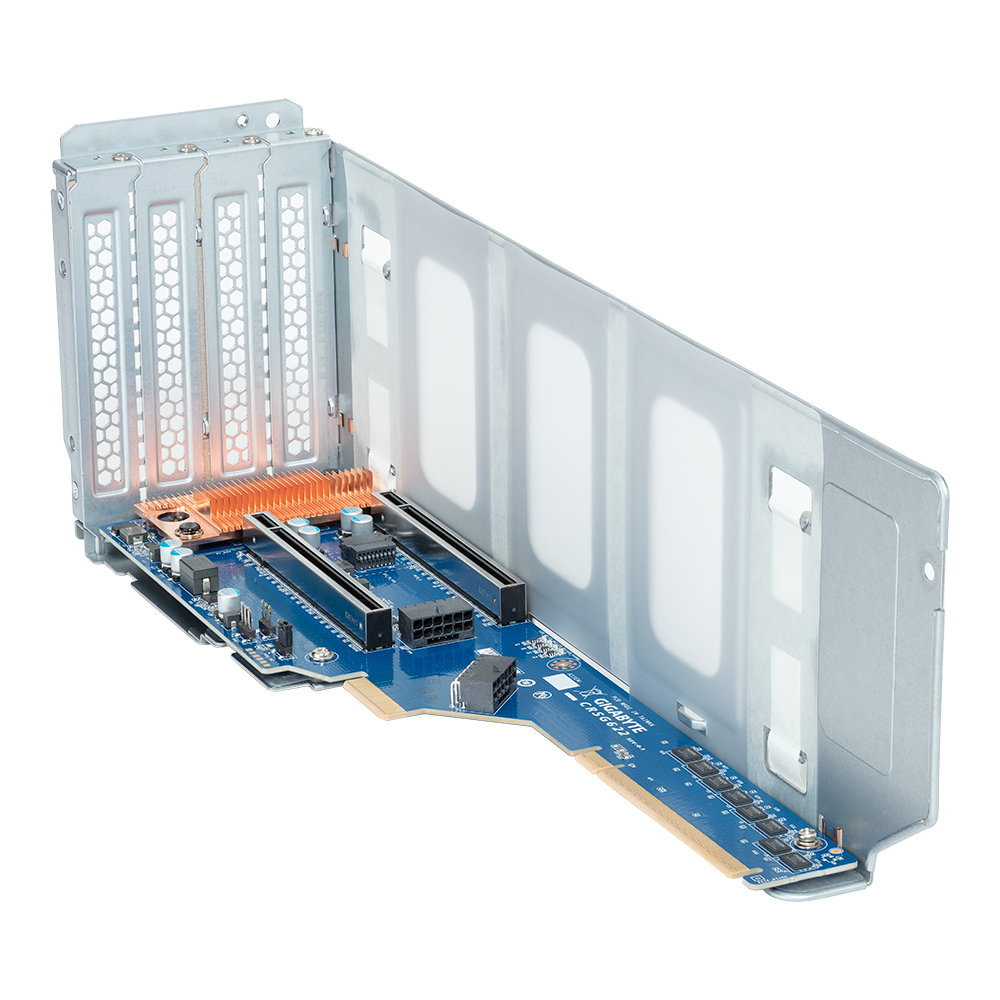

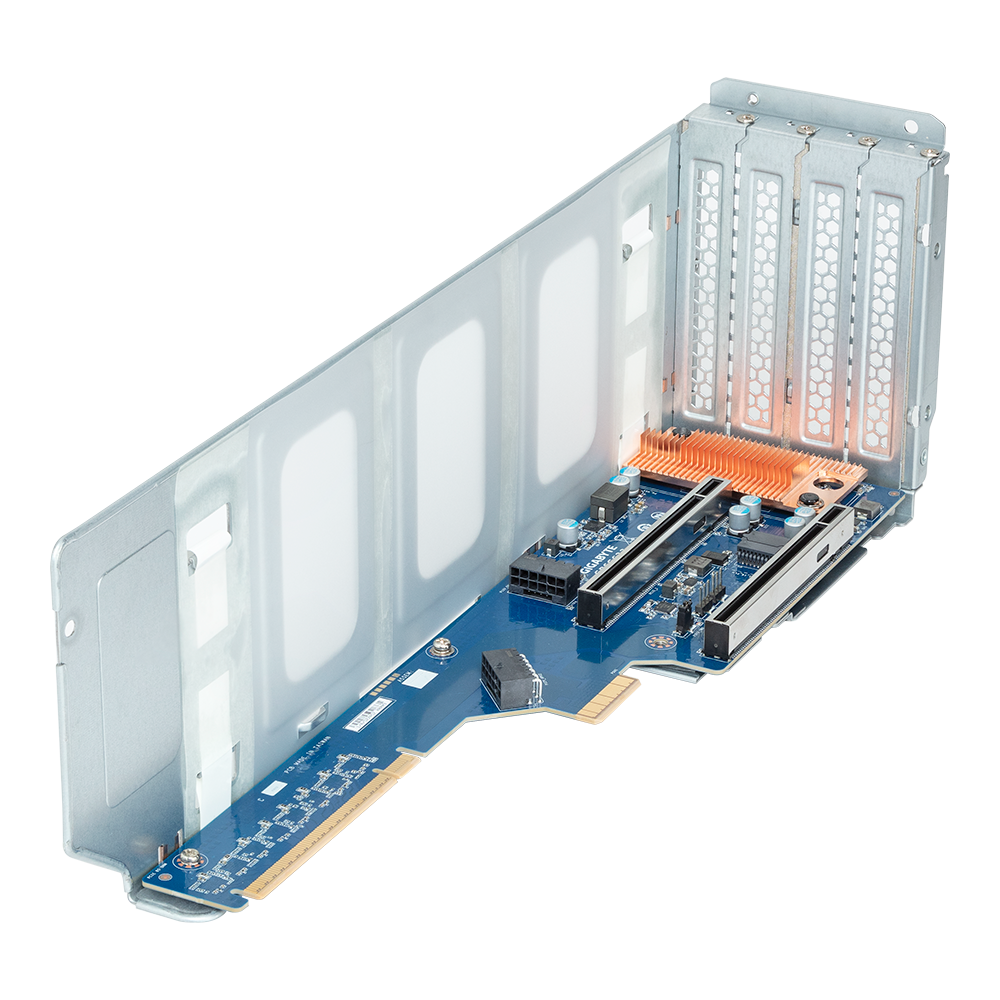

Riser Card

CRSG622 x 2: - 4 x PCIe x16 (Gen5 x16) FHFL slots, from PEX89048, for GPUs CRSG623 x 2: - 4 x PCIe x16 (Gen5 x16) FHFL slots, from PEX89048, for GPUs CRSG01F x 2: - 2 x PCIe x16 (Gen5 x16) low-profile slots, from CPU_0
